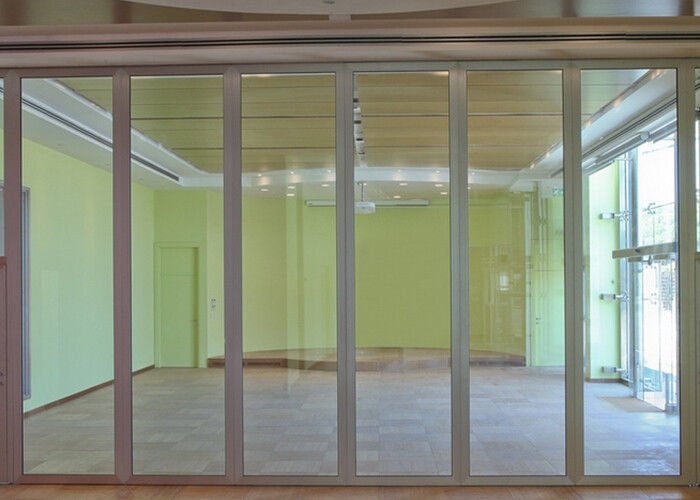

Aluminum Frameless Movable Office Partition Wall / Glass Wall Dividers
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm glass partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 squaremeters |
|---|---|
| Price: | 65/ 102 dollars per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 squaremeters per month |
|
Detail Information |
|||
| Glass Width: | 85 Mm | Material: | Clear Glass |
|---|---|---|---|
| Application: | Office,conference Room | Color: | Transparent |
| Thickness: | 12 Mm | Feature: | Voice Insulation |
| Style: | Sliding | Position: | Interior |
| Service: | OEM ODM | Height: | 6 Meters |
| Highlight: | acoustic sliding partition,sound proof sliding partitions |
||
Product Description
Easy Installation Aluminum Frameless Sliding Movable Glass Partition Walls for Office
Features:
Top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
The system offers various levels of sound reduction
Extensive range of surface finishes available
Bunge Glass Partition Systems-Technical Information
| Series | BG65 Glazing Glass Partition | BG85 Aluminum Frame Glass Partition | BG85 Sound proof Glass Partition |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 36mm | 85mm | 85mm |
| Panel height | Up to 3000mm | Up to 6000mm | Up to 6000mm |
| Max height | 3000mm | 6000mm | 6000mm |
| Panel width | 800-1100mm | 800-1100mm | 800-1100mm |
| Frame construction | Top and bottom aluminum | Aluminum frame | Aluminum frame |
| Glass thickness | 10mm single glass | 10mm or 12mm single glass | double 10mm glass |
| Fire safety | Optional Class O | Optional Class O | Optional Class O |
| Vertical profiles | n/a | n/a | Aluminum anodised with sealing profiles |
| Retractable seals | n/a | n/a | Aluminum black with double rubber seals |
| Operation of seals | n/a | n/a | |
| Pass doors | Fixed full height door | Fixed full height door | Fixed full height door |
| Locking | Optional lock to panel | Optional lock to panel | Optional lock to panel |
| Sound insulation | n/a | n/a | n/a |
| Weight | Approx 30 kg/sq M | Approx 32 kg/sq M | Approx 50 kg/sq M |
2,FIXING
Movable Exhibition partition wall is also called sliding partition wall or movable sound insulation wall, which is widely used to divide big room into small rooms. Each piece of partition can turn 360 degree which makes it flexible. Different core materials decide its sound insulation performance and various finishes make it adapt to many projects such as hotel, exhibition hall, restaurant, multi-functional room, etc.
Common Applications:
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
