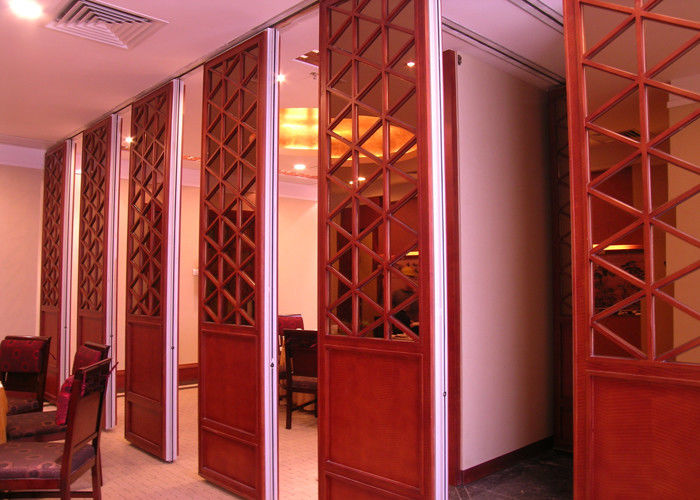

Multi functional Room Sound Proofing Acoustic Folding Screen Room Dividers
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm acoustic room dividers |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 75/ 110 dollars per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Finishing: | Melamine,fabric,leather | Material: | MDF+Aluminum |
|---|---|---|---|
| Thickness: | 65(2 9/16 Inch) | Style: | Sliding |
| Product Name: | Acoustic Room Dividers | Position: | Interior |
| Service: | OEM ODM | Application: | Hotel,banquet Hall |
| Color: | Color Selective (Customized) | Panel Width: | 500 Mm--1220 Mm |
| Highlight: | conference room dividers,sound proof room divider |
||
Product Description
Multi-functional Room Sound Proofing Acoustic Folding Screen Room Dividers
Bunge Operable Wall Systems-Technical Information
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Our service:
1.Welcome OEM or ODM as customer's request(We have three designers for customized).
2.Excellent after-sales service for long-term cooperation but not one-time job.
3.Take responsibility for any quality issue caused by production.
4.Take serious quality control,supply QC report to clients before deliver.
5. Offer new item samples within 1-2 days and quickly production time.
6.All our products meet the standard of different country,Especially European,Australia,USA and Canada marketing.
7.All of the samples are for free.
Feature:
1.Acoustic room dividers can separate the space speedy and conveniently.
2.Muti-function: sound insulation,heat insulation,fireproof function.
3.Top hung system without the need for a floor track.
4.The acoustic room divider is made from high density s/s frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard;
5.Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
6.The acoustic room divider is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways;
7.The acoustic room divider is modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function;
8.The sliding partition wall is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
About us:
Guangzhou Bunge Building Decoration Engineering Co.,Ltd is a professional company in manufacturing Movable Partitions.It also artistically designs and carefully does research and development,.The company has adopted the advance partition technology of USA,Germany and Denmark.We have professional staff with more than 10 years of experience in design,production and installation.
BUNGE movable partition wall is made of high quality anodized aluminum frame with environmentally composite materials.the panels move on a ceiling track with no requirement of floor guides or rails.,the panel has a standard thickness of 65 mm ,85 mm and 100 mm,and a width up to 1230 mm.Maximum height can reach 17 meters tall.
