Interior Decorative Movable Sliding Sound Proof Partition Wall 1230mm Width
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | BANGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm sliding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | US Dollars 80 - 120 per square meters |
| Packaging Details: | Carton package, MDF batten on four section sides , foam board on both front face. |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Panel Width: | 500 Mm--1230 Mm | Door Material: | Melamine Board |
|---|---|---|---|
| Surface: | Melamine,leather,fabric,plywood | Position: | Interior |
| Open Style: | Sliding | Product Name: | Sliding Partition Walls |
| Feature: | Sound Proofing | Size: | 85 Mm(3 1/4 Inch) |
| Color: | Accept Customized | Application: | Office,hotel,conference Room |
| Highlight: | acoustic sliding partition,sliding folding partition |
||
Product Description
Interior Decorative Movable Types of Sound Proof Sliding Partition Walls
65 type movable sliding partition walls
Product information: The thickness of the partition is 65mm. There are single-piece type and double-piece type. The U-shaped and L-shaped door can be opened. The load of each screen is 225kg, and the telescopic range of the top and bottom is 22.5mm.
The nature of the product: magnetic strip vertical inlay, sealing, sound insulation properties in general.
Among them: the reference plane is color steel plate, its sound insulation coefficient RW = 36dB, density 30kg/m2;
The datum plane is a medium-density fiberboard or splint, and its sound-insulating coefficient is RW=32dB, and the density is 24kg/m2;
The reference plane is a glass magnesium board with a sound insulation coefficient of RW=26dB and a density of 25kg/m2;
Product use: Suitable for partition height between 2m and 4.5m
85 type movable sliding partition walls
Product information: The thickness of the partition is 85mm. There are single-piece type and double-piece type. The U-shaped and L-shaped door can be opened. The load of each screen is 450KG, and the top of the screen is 22.5mm.
Nature of the product: Magnetic strips are attached to the two screens. When they are close, they attract themselves. They have good sealing and sound insulation properties.
Among them: the reference plane is a color steel plate, the sound insulation coefficient RW = 50dB, the density is 40kg/m2;
The reference plane is a medium-density fiber board with a sound insulation coefficient of RW=40dB and a density of 32kg/m2.
The reference plane is a glass magnesium board with a sound insulation coefficient of RW=35dB and a density of 33kg/m2;
Product use: Suitable for partition height between 3.5 meters and 7 meters
100 type sliding partition walls
Product Information: The sliding partition walls thickness is 100mm. There are single-piece type and double-sheet type. The U-shaped and L-shaped door can be opened. The load of each screen rail is 650kg, and the top and bottom expansion range is 22.5mm.

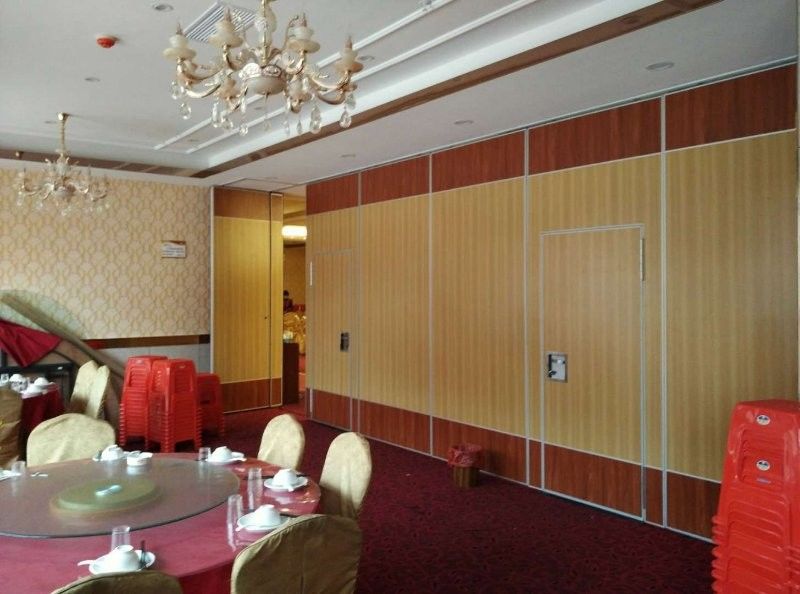

What is the door in doors
With the renovation of hotels, restaurants, tea houses, and modern and simple office meeting rooms, the practicality of the event partition has gradually become popular and widely used. In the daily partitions, it is inevitable that you will need to use the door in the door, so that there is a passage in the separated space. We will now introduce the door in the middle of the partition.
The so-called door in the door, is to open a set of small doors in the partition door to facilitate access. There are two kinds of conventional door doors, one is a single door, and the other is a double door.
Single pass door is generally 700-800mm wide and 2100mm high; double door is 1600mm wide and 2100mm high.The door door trim can be unified according to the ordinary door panel decoration, but in some cases, the door door needs to do a separate style.
|
Panel Suspension
|
Top hunge system without the need for a floor track.
|
||
|
Panel Width
|
Each panel 600mm-1200mm.
|
||
|
Track
|
Aluminum OR Steel Track
|
||
|
Roller on panel
|
Single or Double Roller
|
||
|
Panel Frames
|
Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
|
||
|
Top&bottm seals
|
Top and bottom pressure retractable seals ensure effortless moved and locked.
|
||
|
Module
|
700mm - 1200mm maximum.
|
||
|
Panel stacking
|
Numerous panel stacking options for complete flexibility.
|
||
|
Panel surface
|
MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine.
|
||
|
Finishes
|
Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.
|
||
Sliding partition walls features
Floorless rail suspension: There is no track on the floor, just install the rail on the ceiling;
Stable and safe: stable and reliable after partition, not easy to swing;
Soundproof and environmental protection: good sound insulation effect, sound insulation coefficient;
Insulation and energy saving: excellent insulation performance, according to different seating rates, the
large space is divided into small spaces to reduce the air conditioning power consumption;
Efficient fire protection: The use of high-efficiency fireproof materials, fire performance is good;
Beautiful and generous: Any surface decoration can be combined with indoor decoration effect;
Retractable and flexible: The partitions move freely, promote flexibility, one can complete the entire process of partition; collection is convenient: when closing, the partition can be hidden in a dedicated storage cabinet, does not affect the overall appearance;
Wide range of applications: Wide range of applications, which can be used in conference halls, exhibitions, restaurants, high-cleaning factories, and offices; etc. The activity partitions are characterized by excellent sound insulation, fire prevention, energy saving, flexibility and convenience, as well as multiple use in one hall and more than one hall. The function of energy use has been widely used in the development and utilization of architectural space.
