Removable Wooden Soundproofing Folding Partition Walls / Banquet Hall Partitions
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ASTM E90 |
| Model Number: | 65 mm folding partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|
|
Detail Information |
|||
| Product Name: | Folding Partition Walls | Feature: | Fireproof And Soundproof |
|---|---|---|---|
| Size: | Can Be Customized | Thickness: | 65 Mm(2 9/16 Inch) |
| Color: | Can Be Customized | Flame: | Aluminum |
| Materials: | Aluminum Frame+MDF | Application: | Hotel, Banquet Hall, Meeting Room, Restaurant |
| Rail Load: | 250-1250 Kg/m | ||
| Highlight: | soundproof folding partition,folding room partitions |
||
Product Description

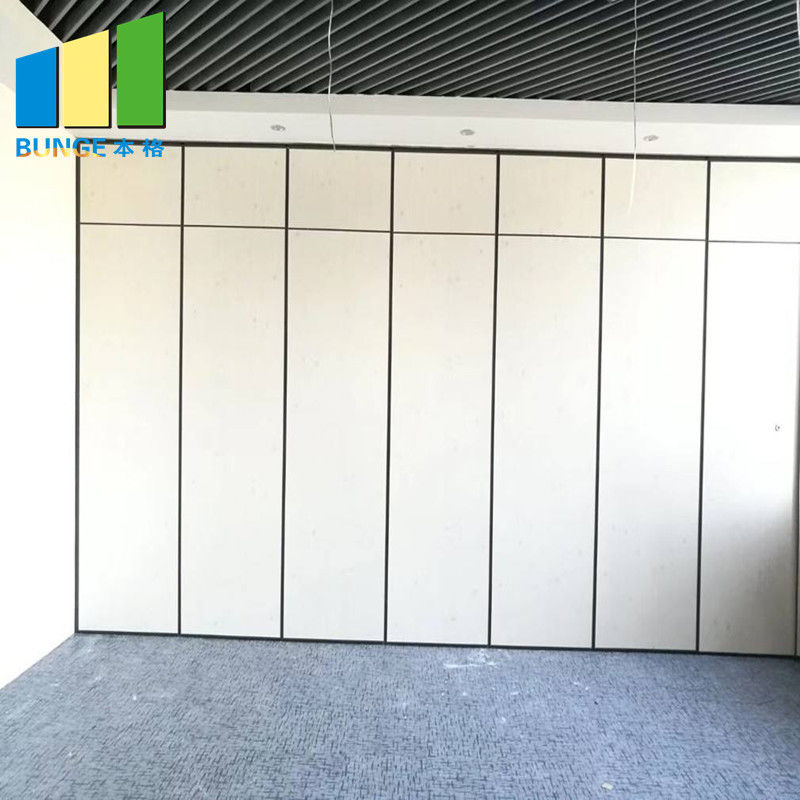

Removable Movable Wooden Acoustic Soundproofing Folding Partition walls
Folding Partition Walls Usage
Each folding partition wall movable piece can be rotated 360 degrees which makes it flexible.
Furniture type folding partition walls increases the internal space of residential changes.
Folding partition walls not only can save office space, but also make a simple modern environment.
Traditional building partitions closer to functional requirements and tastes.
Modern building zone creates a rich and personalized interior space.
Bunge Folding Partition Walls Systems-Technical Information
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Folding Partition Walls Advantages
1) Good performance of sound insulation, thermal insulation and Fire prevention.
2) Save much space for your building.
3) No tracks on the floor, it’s easy to install and remove.
4) Beautiful appearance, it is widely used in many spaces, such as meeting room, dining hall, exhibition
hall, Function room and office.
5) Aluminum or steel top hung system.
6) Retractable top and bottom seals ensure effortless movement of panels and sound-proof.
7) Concealed or exposed panel edge profiles.
8) Sealed for life roller assemblies provide smooth and silent movement.
9) Several levels of sound reduction.
10) Extensive range of surface finishes available.
