MDF Soundproof Fabric Acoustic Partition Walls Interior Divider For Hotel
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Certification: | ASTM E90 |
| Model Number: | 65 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US $80-108 per square meter. |
| Packaging Details: | Paper carton |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 square meters per month. |
|
Detail Information |
|||
| Feature: | Fireproof And Soundproof | Size: | Can Be Customized |
|---|---|---|---|
| Thickness: | 65 Mm(2 9/16 Inch) | Color: | Can Be Customized |
| Flame: | Aluminum | Materials: | Aluminum Frame+MDF |
| Application: | Hotel,restaurant | Rail Load: | 250-1250 Kg/m |
| Product Name: | Acoustic Partition Walls | ||
| Highlight: | acoustic operable wall,movable acoustic partition walls |
||
Product Description
MDF Soundproof Fabric Acoustic Partition Walls Interior Divider For Hotel
Acoustic Partition Walls Details

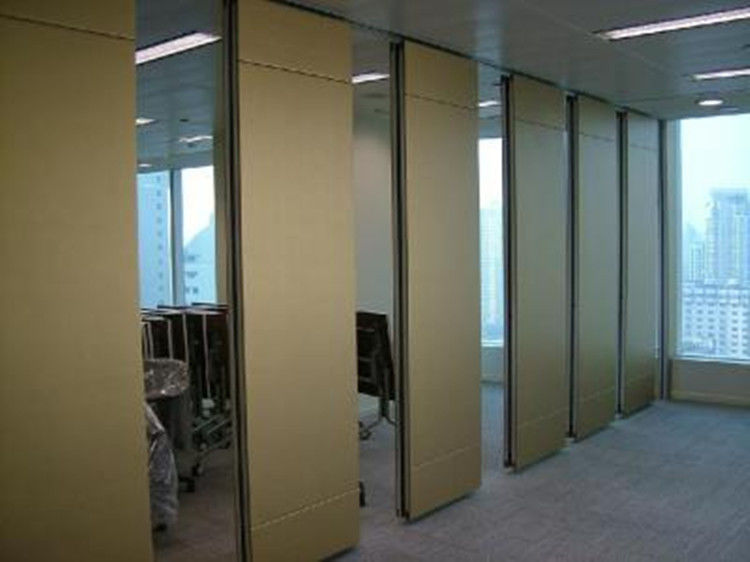

The acoustic partition wall is aluminum-framed operable partition is the most versatile operable wall constructed today. Acoustic partition walls are a series of flat panels, approximately range from 600mm(23") to 1200mm(47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6") ,80mm(3")or 100mm(4") thick models, and in single, pair hinged configurations.
Acoustic partition walls system are 2-1/4” tongue-and-groove unitized panel system. Acoustic partition walls panels are 24” wide, precision laminated, and pre-finished with vinyl, fabric or other specified finish. Panels are manufactured at various heights up to 59’. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.
The BUNGE Acoustic Partition Wall is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.

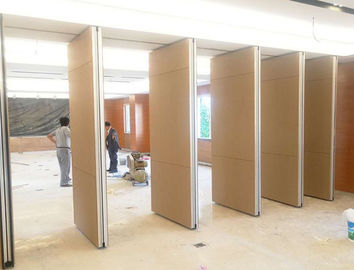

The continuously hinged panels are pulled from their parked position to ‘close’ (or extend) the wall and pushed back to the parked position to ‘open’ (or fold)the wall. Final flat alignment of wall panels is assisted pneumatically by a gas piston located in the top track. A lever or recess handle is fitted to the lead panel and this combined with a vertical rebated profile provides the system with its pass door. The door is available with or without a lock cylinder.
Bunge Acoustic Partition Walls Systems-Technical Information
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65mm | 80mm | 100mm |
| Panel height | Up to 3500mm | Up to 5200mm | Up to 17000mm |
| Max height | 3500mm | 5200mm | 17000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | ||
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire retardant | as request | ||
| Retractable seals | have | ||
| Adjustable panels | Manual, with supplied operating handle | ||
| Pass doors | Single door or double door as request | ||
| Sound insulation | 32dB | 40dB | 50dB |
| Weight | Approx 22-35kg/sqm | Approx 25-40kg/sqm | Approx30-48kg/sqm |
| Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
||
Acoustic Partition Walls FAQ
Q:Do you have your own factory?
A:Yes,we are 100%real manufacturer for acoustic partition wall (13years experience).
Q:Where you have exported to?
A:We have exported to more than 40 countries included(Southeast Asia,Middle East,America,Australia and Europe)
Q:Why BUNGE acoustic partition walls have higher sound insulation performance?What is the difference between doorfold partition system and other suppliers?
A:We have our patented design for the higher sound insulation performance,most of the cases,the sound will come from the panels connections,but doorfold partiton have 7 layers sound barriers.
Q:Have your factory sound proof test report?What is the STC?
A:Yes,we have tested BG-100 TYPE,and it reachs STC53DB.
Q:How to form a acoustic partition walls?
A:The acoustic partition walls normally consists of buld seal panel basic panel and telescopic panel.The first panel is buld seal panel,the last panel is telescopic panel,please see the diagram for better understanding of Doorfold movable partition wall high sound insulation performance.
