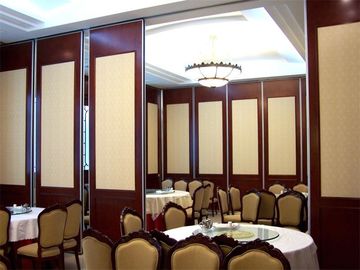

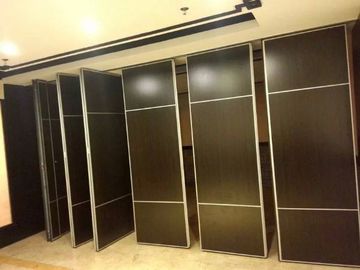

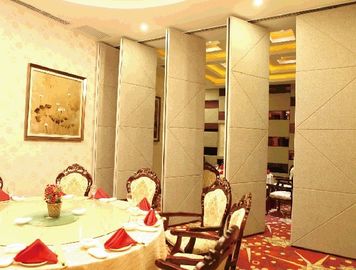

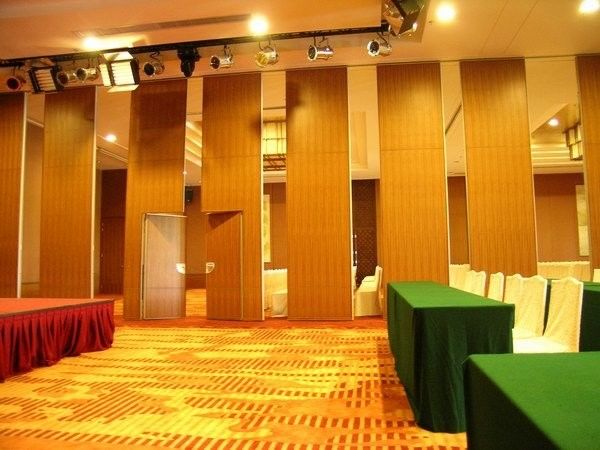

Mobile Acoustic Partition Wall Floor To Ceiling Sliding Partition Wall For Classroom
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm acoustic partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 82 / 126 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Wall | Thickness: | 85 Mm |
|---|---|---|---|
| Height: | Less Than 6 M | Width: | 800-1300 Mm |
| Surface: | Melamine,fabric,leather And Etc | Open Style: | Sliding And Folding |
| Function: | Divide Space | Application: | Classroom,office,conference Hall |
| Material: | MDF Board+Aluminium | ||
| Highlight: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description
Mobile Acoustic Partition Wall Floor to Ceiling Sliding Partition Wall for Classroom
Specification:
The movable acoustic partition walls are a new way to divide spaces with elegance, while respecting the architectural environment in which they are inserted. They are composed of multiple individual elements, which flow along a horizontal guide attached to the ceiling, assembled one after another completing the entire wall. It is not necessary any guidance on the floor, handling the elements is simple, fast and safe. The advantage of a soundproof sliding wall is essentially to occupy reduced space when it is stored, and when the wall is composed of all its elements.
Feature:
1.it is very convenient to be able to expand or reduce it according to different needs.
2.Preservation and storage are appropriate and convenient.
3.The sound insulation is good, not only the sound insulation, but also the heat insulation.
4.The usual mobile partition, its design is relatively fashionable. So, be able to put it anywhere. Can also play a certain beautification role.
5.The stability of the mobile partition is strong. It is not easy to offset the position.
Acoustic partition wall operation:
When moving a wall panel there is a 22.5-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.
Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.
The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Acoustic partition wall application:
Acoustic Movable partition has good sound absorbing effect and fireproof effect. It can be used in different occasions. It can be used in the meeting of the company. It is very effective to use the movable partition in some densely populated restaurants. The surface of the movable partition is very Smooth, it is very convenient to wipe when needed.
Movable partition belongs to the products in the partition series, and is widely used in high-end places such as hotels, hotels, schools, business clubs, exhibition centers, etc. Therefore, the beauty and quality of the screens of the activities are the first choice for VIP customers, and the planning of the scheme should pay more attention to the overall situation. The overall look is more atmospheric and luxurious. We pay more attention to customer perception, fully consider customer needs, and provide you with a more perfect experience.
We can offer:
We design and manufacture value for money products with a one year warranty on all the outstanding ranges illustrated in this brochure.
We offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
