Hotel Folding Sliding Partition Wall System Banquet Acoustic Room Dividers For Restaurant
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm acoustic room dividers |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Room Dividers | Application: | Banquet Room Partitions |
|---|---|---|---|
| Finish: | Melamine, Laminate | Sample: | Free |
| Color: | Optional | Thickness: | 85 Mm(3 1/4 Inch) |
| Highlight: | sound proof room divider,banquet hall room dividers |
||
Product Description
Hotel Folding Sliding Partition Wall System Banquet Acoustic Room Dividers for Restaurant

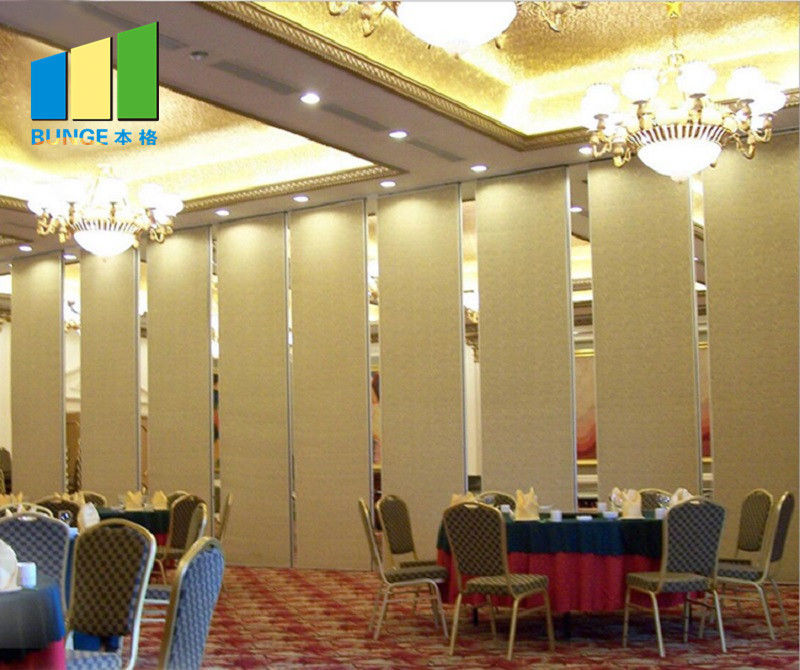

Finished project
Thanks for the trust from the client who comes from India.
This banquet hall operable partition walls project finished and delivered in March,2018.
Totally 4 sets of walls. Height:3.76 meters. 185 square meters.
Our technician also went to project to supervise the installation. After installing the tracks system well, our technician came back and the client need us to do the pocket door for him.
Finish: Melamine Surface. Color Chart: CS-3061F.
Acoustic room dividers features
1. The acoustic room divider is a hanging system, which have the ceiling rails, but have no floor reails. So it will not damage the floor or carpet at the project site.
2. All of the acoustic room dividers can be customized, such as the size, the colors and the surfaces.
3. The acoustic room dividers can help you divide a big space into 2 or more smaller rooms. When you do not use them, they can be parked to the parking zone conveniently and quickly.
4. The operation is very easy, 1 person can finish the whole operation.
5. More than 60 kinds of colors to choose.
6. Different surfaces also available. Such as the MDF, Plywood, Melamine, Veneer, Fabric and Leather surface.

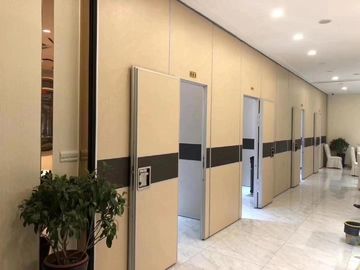

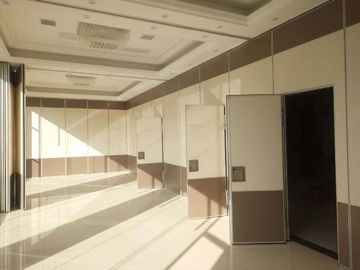

7. Single or Double Pass Door also available, which can help you come in and out easily.
Technical information
| TYPE | BG 65 | BG 85 | BG 100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 88mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Acoustic room dividers installation
1. Please designate the responsible person before construction and leave contact information to facilitate communication between the two parties on construction logistics.
2. If the ground has been finished before the track construction, if the carpet, floor tiles, floor, etc. have been laid, you need to do ground protection to prevent the welding sparks from damaging the ground.
3. You need to provide the height of the shed after the decoration is completed. We will determine the height of the track installation according to this height.
4. Because we need to calculate the size of the hanging track, you need to provide the net size of the finished wall and the pillar. We will hang the track according to this size.
5. After the track suspension is completed, the reserved wall size given by you cannot be changed. Because we calculate the construction according to this size, if the size is changed, the door panel will not operate.
6. After the track suspension is completed, our construction personnel will fill in the dimensional confirmation letter to provide accurate data for the production of the wallboard. You need to specify the person in charge of the site to confirm.
7. The acoustic room dividers should be horizontally perpendicular to the ground directly below the track, and the error should not exceed 1cm.
8. If there are other constructions at the same time, please do not pierce the foreign objects such as nails and insert them on the installed rails. This will cause the door pulleys to not run in the track.
9. Each group of tracks will have a “raw mouth”, which will be removed before installing the door panel, and then installed after the door panel is installed. This "raw mouth" cannot be sealed.
10. In order to facilitate future maintenance and maintenance, please reserve the inspection port near the ceiling track to facilitate the maintenance personnel to enter the inspection port for product maintenance and maintenance.
11. If you need to improve the sound insulation effect of the product, after the track is hung, you can make sound insulation between the track and the original shed.
12. After the door panel is hung, it needs to be debugged. Active partition reminder Do not use the door panel before our personnel have debugged the door panel, otherwise forcible use will result in damage to the door panel.
