85MM Aluminum Frame Sound Proof Partitions Melamine Surface Movable Wall
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | BUNGE |
| Model Number: | Series 85 mm sound proof partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | 75-109 USD per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Sound Proof Partitions | Material: | Aluminium Frame And Mdf Board |
|---|---|---|---|
| Height: | Less Then 6m | Width: | 500-1200 Mm |
| Thickness: | 85mm | Function: | Space Divide,sound Proof |
| Application: | Gallery,theater,office,banquet Hall,hotel Ect | Warranty: | 3-5 Years |
| Highlight: | sounproof folding partition,movable soundproof partition |
||
Product Description

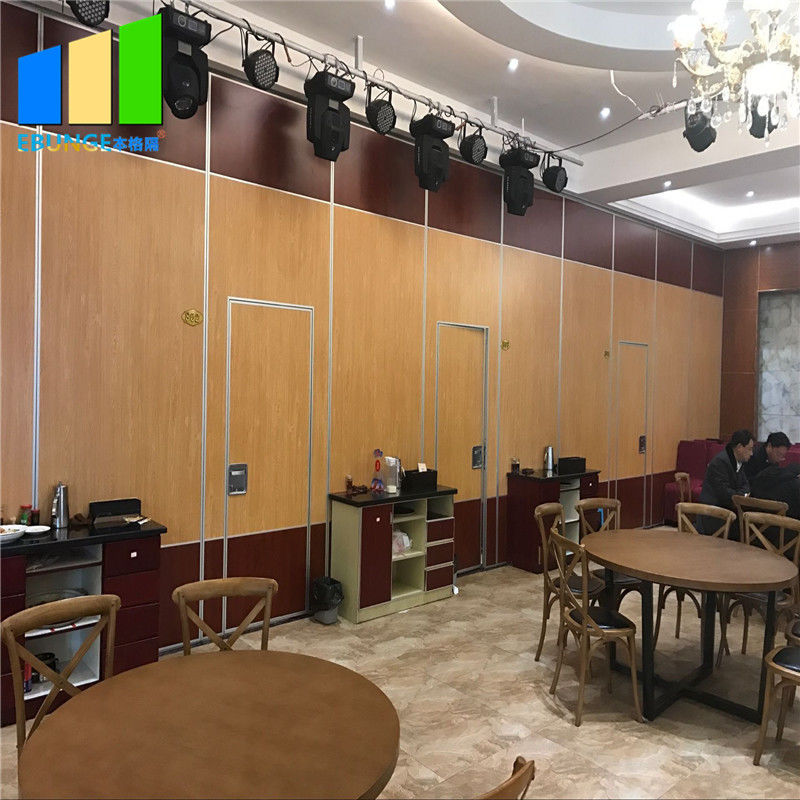

85MM aluminum frame sound proof partitions melamine surface movable wall
Specification:
 |
Specifications 1. Sliding Partition walls can separate the space speedy and conveniently.
2. Top hung system without the need for a floor track.
3. Office partition wall is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
4. Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
5. The aluminium partition wall finished panel is hanging on the aluminum track, assembled with muti direction wheels. |
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Packing and shipping:
Our normal packing for movable partition wall is carton package, MDF batten on four section sides ,foam board on both front face.
| Free Sample in 10 Days Inquiry now and you will have your sample in 10 day if you pay the express. | 3-year Warranty The acoustic room divider made of 6063-T5 alumina, anti-aging, no fading and abrasion in 10 years | OEM Service Your logo can be printed on the packaging carton |
We have clients from all over the world,they are satisfied with our soundproof movable partition walls.
When they came to our factory, they all surprised at our environment and our technology.
There are a big movable wall show room in our factory, with different finish samples. Like glass partition, melamine partition, leather partition, fabric partition etc.
