Meeting Room Operable Wall Moveable Acoustic Partition Walls In Manila
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm moveable acoustic partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ, small quantity welcome |
|---|---|
| Price: | $82-88 per square meter |
| Packaging Details: | Paper carton, outside with wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Moveable Acoustic Partitions | Application: | Meeting Room Partitions |
|---|---|---|---|
| Sound Insulation: | 28-40 Db | Thickness: | 65 Mm(2 9/16 Inch) |
| Finishing Option: | Melamine, Fabric, Leather | Carrier Over Load: | 225-1300 KG |
| Highlight: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description

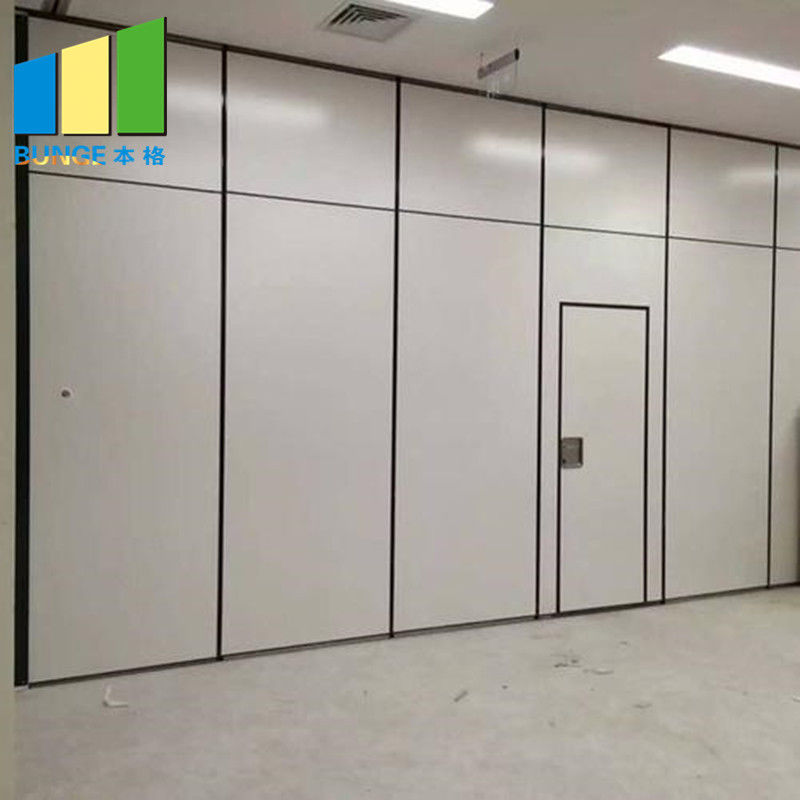

Meeting Room Operable Wall Moveable Acoustic Partition Walls in Manila
Moveable acoustic partitions details
The section configuration of special folding partition walls panel: substrate, felt and surface.
1)Substrate(basal material): based on high quality of 12/15/18mm MDF with density of 750kg/m3,
more choices for basal material:HDF, E1 ECO-friendly MDF and Fireproof MDF(B1 grade).
2)Feld: acoustic fleece, pasted on the back of the panel, noise reducible and fire resistant(made in CHINA, GERMANY AND FRANCE)
3)Surface: available in three different finishes: real wood veneer, printed wood melamine finished and fireproofing surface.
Technical Information
| Series |
Thickness (mm) |
Applied height (m) |
Width of Intermediate panel (m) |
Acoustical reduction coefficient (db) |
Hanging weight |
| #65 | 65 | 2.0~4.5 | 0.6~1.2 | 35 | 30kg/m2 |
| #85 | 85 | 3.0~6.8 | 0.6~1.2 | 45 | 35kg/m2 |
| #100 | 100 | 5.0~8.0 | 0.6~1.2 | 53 | 45kg/m2 |
| #125 | 120 | 7.0~13.0 | 0.6~1.2 | 65 | 65kg/m2 |
| Model | BG65 Series | BG80 Series | BG100 Series | BG High-Series | |
| Suspensionsystem | Aluminum hanging | Steal Hanging | |||
| Basic Thickness | 65 mm | 80 mm | 100 mm | 100 mm | |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm | |
| Max Height | Up to 3800 mm | Up to 6000 mm | Up to 8000 mm | Up to 15000 mm | |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm | |
| Floor/Ceiling Sealing Strength | Telescopic aluminum tube with rubber strip. | ||||
| Side walls sealing strength | Double seal tape | ||||
| Sound insulation level | 26-30 db | 28-34 db | 32-40 db | 42-52 db | |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | |||
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | ||||
Moveable acoustic partitions FAQ
How to select the suitable moveable acoustic partitions for your site?
We have 4 types of moveable acoustic partition,65type,85type,100type and 125 ultra-high type. You can choose the right movable acoustic partitions upon the Height and Soundproof requirement as following:
65type-- Max height 3.5m, soundproof: 38dB to 43dB
85type- Max height:5.5m,Soundproof: 43dB to 53dB
100type--- Max height:7m,Soundproof: 43dB to 58dB
125ultra-height---Max height:17m,Soundproof: 38dB to 48dB
Q1. Can I have a sample order for moveable acoustic partitions?
A: we can provide afree sample to every client.
Q2. What about the lead time?
A:Sample needs 10-20 days, mass production time needs 2-4 weeks for order quantity more than
Q3. Do you have any MOQ limit for moveable acoustic partitions order?
A: Low MOQ, 30 sqm is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 2-5 weeks to arrive.
Q5. How to proceed an order for Partition?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the drawing and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the acoustic moveable partitions?
A: Yes, we offer 1- 3 years warranty to our products.
