Hotel Operable Folding Wall Movable Acoustic Partition Wall For Banquet Hall
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm moveable acoustic partitions |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ, small quantity welcome |
|---|---|
| Price: | $82-88 per square meter |
| Packaging Details: | Paper carton, outside with wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Moveable Acoustic Partitions | Application: | Hotel Partition Walls |
|---|---|---|---|
| Material: | Aluminum Alloy+MDF | Thickness: | 65 Mm(2 9/16 Inch) |
| Finishing Option: | Melamine, Fabric, Leather | Weight: | 25 -35 KG Per Square Meter |
| Highlight: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description
Hotel Operable Folding Wall Movable Acoustic Partition Walls for Banquet Hall
Moveable acoustic partitions advantages
1. Stability and safety- The new type of foaming technology assures you of reliable stability.
2. Fire retardant- Excellent fire resistance, no burning against fire, carbonization with the skin, no droplets.
3. Sound proofing. With a 95% of the closed porosity of the middle core, the moveable acoustic partitions obstructs the spreading of sound, and ensure a quiet and peaceful environment.
4. Insulation value- Keep warming and heat insulation, which has excellent cold-resistance and heat-insulation performance to reduce the cost of heating and refrigeration.
5. Light - The board adopts the micropore foaming technology, and reduce the weight afford and installation budget a lot, and also can be easily moving.
6. Decoration on both sides- Choose any patterns on both sides of AEP, and make the moveable acoustic partitions much gorgeous and fabulous.
7.Flexible Uses - Useful in many applications - conference rooms, exhibition centers, restaurants, schools, churches, retail shops, or factories, etc.
Technical Information
| Series |
Thickness (mm) |
Applied height (m) |
Width of Intermediate panel (m) |
Acoustical reduction coefficient (db) |
Hanging weight |
| #65 | 65 | 2.0~4.5 | 0.6~1.2 | 35 | 30kg/m2 |
| #85 | 85 | 3.0~6.8 | 0.6~1.2 | 45 | 35kg/m2 |
| #100 | 100 | 5.0~8.0 | 0.6~1.2 | 53 | 45kg/m2 |
| #125 | 120 | 7.0~13.0 | 0.6~1.2 | 65 | 65kg/m2 |
| Model | BG65 Series | BG80 Series | BG100 Series | BG High-Series | |
| Suspensionsystem | Aluminum hanging | Steal Hanging | |||
| Basic Thickness | 65 mm | 80 mm | 100 mm | 100 mm | |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm | 100/120/130mm | |
| Max Height | Up to 3800 mm | Up to 6000 mm | Up to 8000 mm | Up to 15000 mm | |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm | |
| Floor/Ceiling Sealing Strength | Telescopic aluminum tube with rubber strip. | ||||
| Side walls sealing strength | Double seal tape | ||||
| Sound insulation level | 26-30 db | 28-34 db | 32-40 db | 42-52 db | |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | |||
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized | ||||

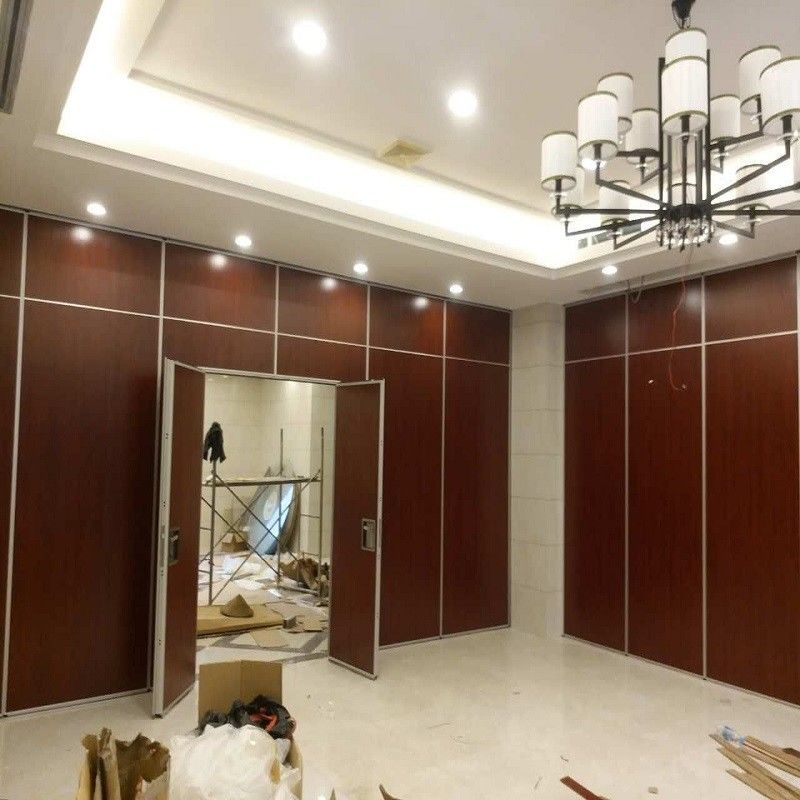

Moveable acoustic partition cases
Project site: India
Model: BUNGE 85 mm moveable acoustic partitions
Width: 3*10550 mm,1*6900 mm
Height: 3760 mm
Total: 4 sets, 145 square meters
Finish: Melamine
Color: CS-3087
Moveable acoustic partitions FAQ
How to select the suitable moveable acoustic partitions for your site?
We have 4 types of moveable acoustic partition,65type,85type,100type and 125 ultra-high type. You can choose the right movable acoustic partitions upon the Height and Soundproof requirement as following:
65type-- Max height 3.5m, soundproof: 38dB to 43dB
85type- Max height:5.5m,Soundproof: 43dB to 53dB
100type--- Max height:7m,Soundproof: 43dB to 58dB
125ultra-height---Max height:17m,Soundproof: 38dB to 48dB
Q1. Can I have a sample order for moveable acoustic partitions?
A: we can provide afree sample to every client.
Q2. What about the lead time?
A:Sample needs 10-20 days, mass production time needs 2-4 weeks for order quantity more than
Q3. Do you have any MOQ limit for moveable acoustic partitions order?
A: Low MOQ, 30 sqm is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 2-5 weeks to arrive.
Q5. How to proceed an order for Partition?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the drawing and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the acoustic moveable partitions?
A: Yes, we offer 1- 3 years warranty to our products.
