Sound Proof Operable Moveable Partition Foldable Acoustic Room Divider For Auditorium
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm acoustic room divider |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-98 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Room Dividers | Finish: | Melamine |
|---|---|---|---|
| Application: | Auditorium Moveable Partitions | Panel Height: | 25 KG Per Square Meter |
| Style: | Folding And Sliding | Color: | Color Chart Optional |
| Highlight: | sound proof room divider,banquet hall room dividers |
||
Product Description

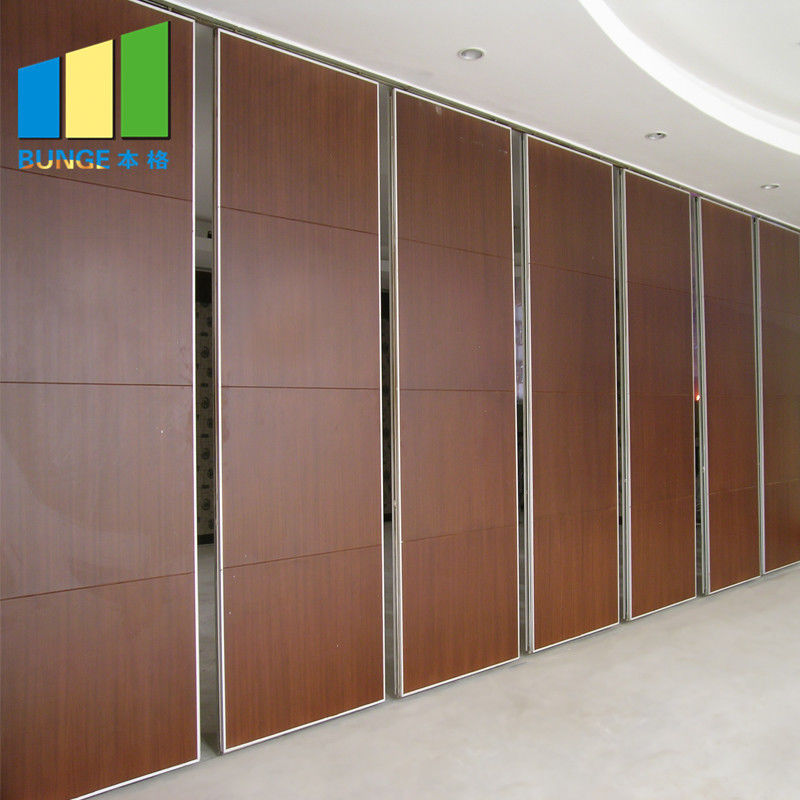

Sound Proof Operable Moveable Partition Foldable Acoustic Room Divider for Auditorium
Do you know this acoustic room dividers system?
BUNGE acoustsic room dividers system is a movable soundproof room partition system which forms a removable wall. The acoustic room dividers are often used to temporarily divide a big room into several small rooms. Unlike other room partition materials, movable partition wall has excellent soundproofing performance and operation easily.
1. System.
The acoustic room divider is a hanging system, which have the ceiling tracks, but have no floor tracks. It means that there is nothing on the floor, so it will not damage the carpet and floor at site. And they are sliding, folding and movable.
2. Size Customized.
Acoustic room divider is a whole customized product. We can produce the acoustic room dividers based on the different demands of different client, including the size, the colors and the finishes. The normal thickness is 65, 85 and 100 mm thick, the maximum thickness is 130 mm. The width is available between 800-1220 mm and the maximum height can up to 17 meters.
3. Different Surfaces Available
There are several surfaces for client to choose. Such as:
MDF or Plywood(this is a raw finish, the client can paint or put the wallpaper on the panels).
Melamine or laminate(this is the most popular surface for clients, because it is most economical, there are more than 60 colors to choose and very easy to maintain).
Fabric or Leather(soft cover and hard cover also available, of course it will be sound proofing than other surfaces).
Glass or mirror(very popular in dancing room and music school).
Acoustic panels(such as the polyester acoustic panels, wooden grooved acoustic panels and wooden perforated acoustic panels).
Landscape painting PU leather(the client can choose the most favorite picture or drawing, then we can print and put it on the panels as surfaces.)
Technical Information
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle | ||
| Locking | Optional lock to passing doors | ||
| Passing doors | Single open in one panel or double open in two panel | ||
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Acoustic foldable partition advantages
Long-term use: with more economy and higher decorative, beautiful and safe, will not scratch the skin.
Cost savings: installation does not affect the construction of smallpox and the ground.
Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building materials.
Material environmental protection: selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
