Movable Aluminum Folding Soundproofing Acoustic Room Dividers For Meeting Room
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm acoustic room dividers |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Room Dividers | Height: | 2 - 4 Meters |
|---|---|---|---|
| Finish: | Laminate | Application: | Meeting Room Dividers |
| Position: | Interior | Pass Door: | Single Or Double |
| Highlight: | sound proof room divider,banquet hall room dividers |
||
Product Description

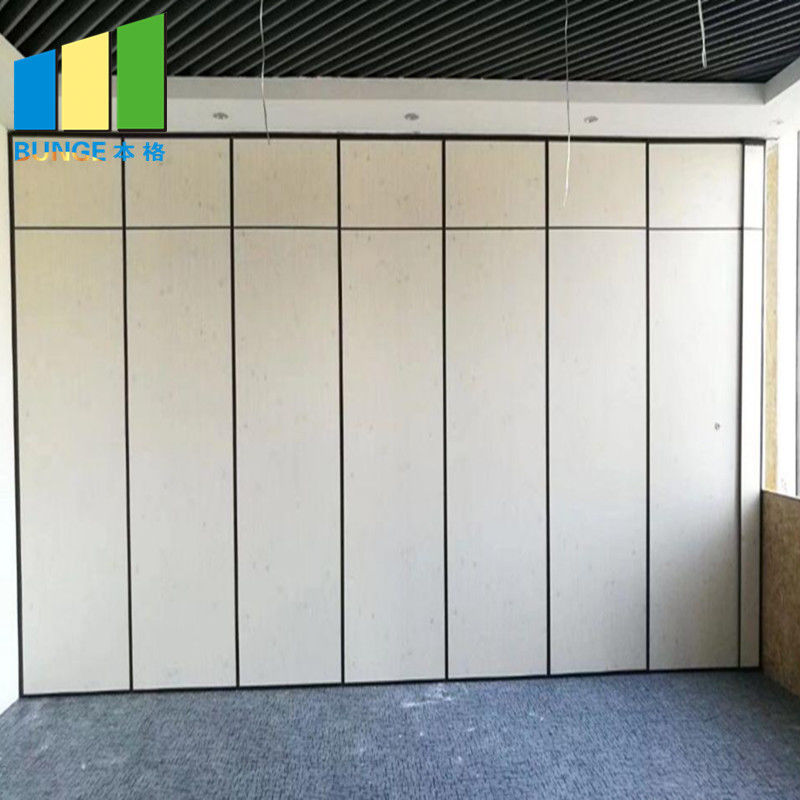

Movable Meeting Room Aluminum Folding Soundproofing Acoustic Room Dividers
Acoustic room dividers advantages
The BUNGE Acoustic room dividers satisfies the most stringent requirements a user may demand from a movable wall.
The BUNGE acoustic room divider has excellent acoustical properties. When it comes to sound insulation this acoustic room divider is the obvious choice, its sound insulation ranges from 37-58 decibels.
The BUNGE acoustic room divider panels runs smoothly along its tracks on ball-bearing trollies and is very easy to operate, it is rigid, robust and has safety features that assist in its operation.
The BUNGE acoustic room dividers can benefit from a specially made steel self-supporting frame structure of which can achieve heights of more than 17 meters. Operated by a specialist scissor jack mechanism that ensures the greatest possible stability and the highest degree of sound proofing.
The BUNGE acoustic room dividers Panels fully complies with Acoustics in Schools and is specified regularly by Architects and Designers.
Further information, drawings, colour finishes, can all be obtained by request.
Technical information
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
Acoustic room dividers details
1. Soundproofing.
Acoustic room divider is a sealing system, there are some specific sections(“M”&“W”sections) between the partition walls panels. The pressure seals are extended and retracted by a single 180°turn of a removable operating handle. Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals. So there is no gap between the panels. In addition, inside is full of sound proof cottons. So it can achieve an excellent sound proofing performance.
2. Easy operation.
The acoustic room divider is movable and sliding. When you use them, they can help you divide a big space into 2 or more smaller rooms. And when you do not use them, they can be park to the parking zone. 1 person can finish the whole operation.
3. Application.
Nowadays the acoustic room dividers are more and more popular for the clients. They are widely used in hotel banquet hall, office conference hall, meeting room, classroom, function hall, ballroom, gym, exhibition hall and many other public places.
