Movable Partition System Acoustic Sliding Walls With Door For Convention Hall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EBUNGE |
| Model Number: | 85 MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton paper packing ,MDF Batten cover all over the corner |
| Delivery Time: | 7-28 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Wall | Material: | MDF With Melamine |
|---|---|---|---|
| Color: | Customized | Function: | Soundproof Partition Wall Panels |
| Service: | ODM OEM | MOQ: | NO MOQ |
| Finish: | Melanimine | Package: | Standard Wood Case |
| Frame Material: | Aluminum Alloy Profile | Height: | 6000 MM |
| Width: | 500 - 1230 Mm | Style: | Simple & Modern |
| Highlight: | movable walls on wheels,movable partitions systems |
||
Product Description

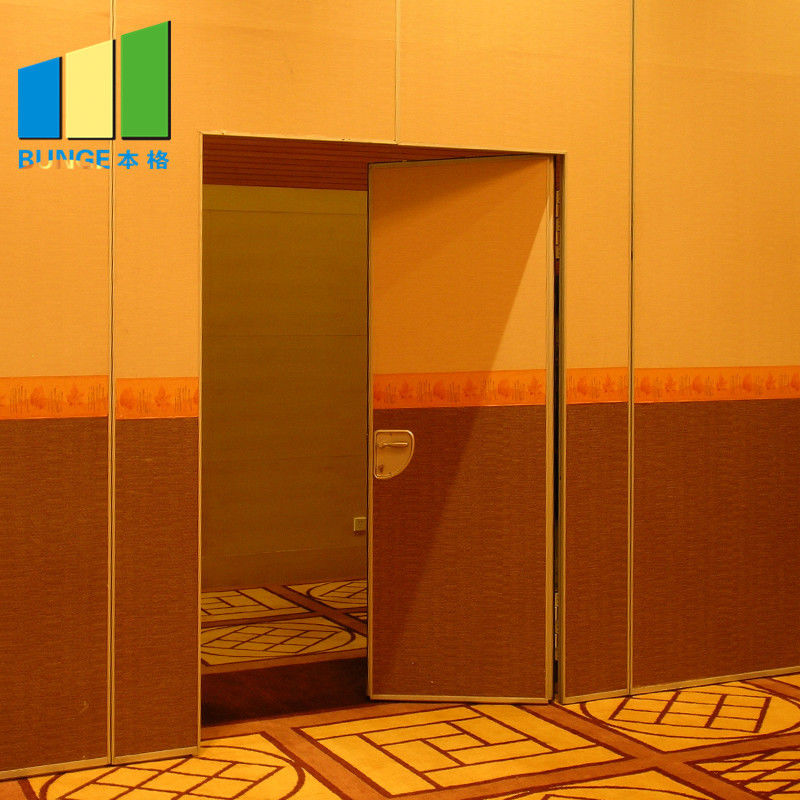

Movable partition system acoustic sliding walls with door for convention hall
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Modernized Soundproof Movable partition features | |
| 1. Hanging on ceiling | The floor without a track, just put the rail mounted on the ceiling |
| 2. Excellent Quality | Each pieces of partition can turn around 360 degree. |
| 3. Stable and secure | After partition is stable and reliable, and is not easy to swing |
| 4. Energy efficient | The large space divided into a small space, in order to reduce air conditioning power consumption; |
| 5. Heatproof&fireproof | Good heat insulation performance, Adopt effective fire prevention materials |
| 6. Elegant appearance | Surface any adornment, can unite with indoor adornment effect |
| 7. Easy to collect | Can be hidden in the special coffer, does not affect the overall appearance |
| 8. Various applications | Hotels, exhibition halls, restaurants, multi-functional rooms etc. |
Packaging & Delivery
Selling Units:Single item
Single package size: 4000X1100X100 cm
Single gross weight:26.0 kg
Package Type:Carton package, MDF batten on four section sides ,foam board on both front face
Lead Time :
| Quantity(Square Meter) | 1 - 50 | 51 - 200 | 201 - 500 | >500 |
| Est. Time(days) | 7 | 18 | 28 |
To be negotiated |
Components of Office Partition Walls:
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the office partition walls with wheels.
Wheels/Rollers: It is the carrier for the office partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,"L", "T", "+"types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the office partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.
2. Q: What is the price of the movable wall?
A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different
walls and the price of different finishes are different. Therefore, we need you to provide us detailed
dimensions such as height, width and finish requirements. If possible, we also need your
layout drawings.
3. Q: Is the movable partition acoustic (soundproof)?
A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and
various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can
reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type
we can reach 50db.
4. Q: How to install an active partition? Is it difficult to complete?
A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall
that does not require any ground track. Therefore the hanging rail structure will be very important. We
have very detailed drawings and videos showing how to install, so your employees just need to follow
them step by step.
5. Q: Do you provide sample?
A: Yes, and the sample is free, you just pay the express delivery fee is ok.
6. Q: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T
before loading container, or irrevocable L/C at sight.
7. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and
accessories working properly under correct operation.In case of our quality problem, we will provide
replacement by international courier. Immediate delivery of replacement parts with available in stock,
and if not stocking, the time should be depending on material ordering time which is normally 10-
15 days.
Very velcome to visit our Web and contact us!
Send us a question below to get a movable wall catolog and special discounts!
