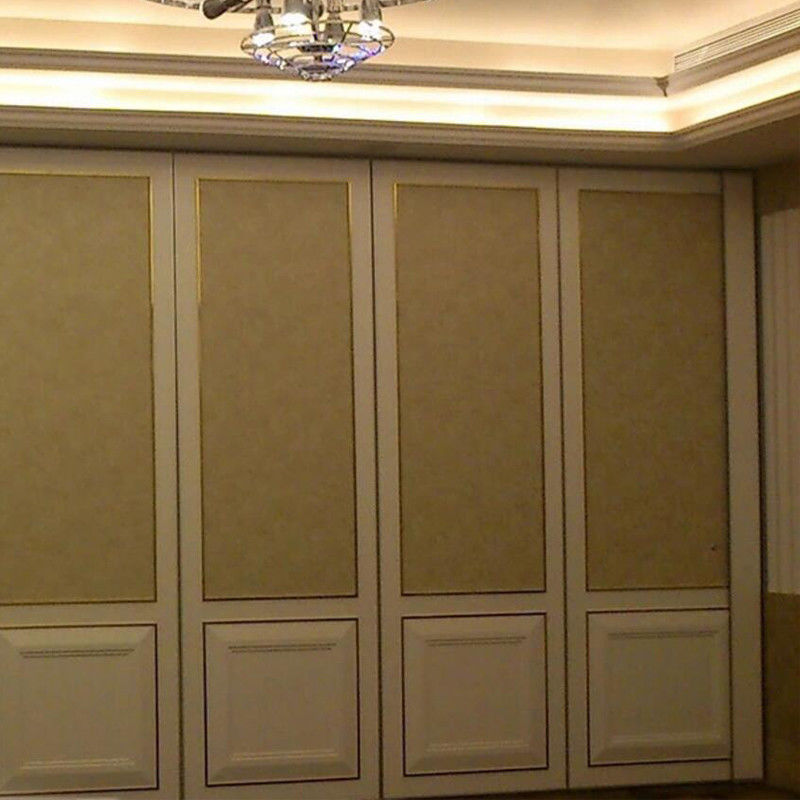

4000 mm Height Restaurant Movable Partition Walls / Acoustic Partition Walls
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | EBUNGE |
Model Number: | 65 MM |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 square meter |
---|---|
Price: | Negotiable |
Packaging Details: | Carton paper packing ,MDF Batten cover all over the corner |
Delivery Time: | 7-28 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 10000 square meters per month |
Detail Information |
|||
Product Name: | Movable Partition Walls | Material: | MDF With Melamine |
---|---|---|---|
Color: | Customized | Function: | Soundproof Partition Wall Panels |
Service: | ODM OEM | MOQ: | NO MOQ |
Finish: | Melamine | Package: | Paper Packaging, Finally Packed In Wooden Carton |
Frame Material: | Aluminum Alloy Profile | Height: | 4000 Mm |
Style: | Fashion | ||
Highlight: | movable walls on wheels,movable partitions systems |
Product Description
Restaurant movable walls acoustic partition walls restaurant movable partition wall quality manufacturer in China
Product Description:
Movable partition wall has a basic function that is separating the interior space.
It can divide a large space into a small space or a small space into a large space at any time ,according to different customers needs and has a general wall function.
Mainly benifits of partition wall is that has high sound insulation, fire prevention, sliding and folding, and easy operation.
It has been widely used in hotels, ballrooms, multi-function halls, conference rooms, banquet halls, office buildings, exhibition halls, dancing rooms and other occasions.
Bunge's reputation for quality and reliable products, clever designs and an insistence on excellent service is the reason why architects, engineers and contractors routinely insist on Bunge partition walls for their building projects.
Technical information:
Series |
BG65 |
BG85 |
BG100 |
Panel suspension |
Top hung only |
Top hung only |
Top hung only |
Track system |
Single or twin point |
Single or twin point |
Single or twin point |
Panel thickness |
65mm |
80mm / 85mm |
100mm |
Panel height |
Up to 4000mm |
Up to 6000mm |
Up to 18000mm |
Max height |
4000mm |
6000mm |
18000mm |
Panel width |
600-1230mm |
600-1230mm |
600-1230mm |
Frame construction |
Aluminum frame |
Aluminum frame |
Aluminum frame |
Face material |
9mm |
9mm / 12mm |
12mm |
Fire safety |
Optional Class I or O |
Optional Class I or O |
Optional Class I or O |
Vertical profiles |
Aluminum anodised with sealing profiles |
Aluminum anodised with sealing profiles |
Aluminum anodised with sealing profiles |
Retractable seals |
Aluminum black with |
Aluminum black with double rubber seals |
Aluminum black with double rubber seals |
Operation of seals |
Manual, with supplied |
Manual, with supplied operating handle |
Manual, with supplied operating handle |
Locking |
Optional lock to pass doors |
Optional lock to pass doors |
Optional lock to pass doors |
Pass doors |
Single open in panel or |
Single open in panel or double open in two panel |
Single open in panel or double open in two panel |
Sound insulation |
20-32dB Rw |
28-36dB Rw |
32-50dB Rw |
Weight |
Approx 22-35kg/sq M |
Approx 25-40kg/sq M |
Approx30-48kg/sq M |
Features & Benefits:
1. Movable, interlocking panels suspended from an overhead track system
2. Sound rated panels for effective noise control
3. Available in paired (folding) and individual (omni-directional) configurations
4. Can include access doors for easy entry and exit
5. Blend with a room's aesthetics, similar to a permanent wall when extended.
6. Available in a wide range of colours and finishes, including: MDF, Melamine, Fabric, Leather, veneer,Landscope painting, Wall paper, Wood mouldings, etc.
Packaging & Shipping
We have clients from all over the world,they are satisfied with our soundproof movable partition walls.
When they came to our factory, they all surprised at our environment and our technology.
There are a big movable wall show room in our factory, with different finish samples. Like glass partition, melamine partition, leather partition, fabric partition etc.
Sliding partition wall when we finished production, we will use carton packing and mdf board to pack movable panels.
And we will also make one or more packing boxes for clients.It can reduce damagement during transportation.
We usually transport movable panels by sea, such as CIF price.
Some aluminium profile,sliding track,glass clips and other accessories we can transport by courier, like DHL or Fedex.
FAQ
1. What the Movable Partition Wall use for?
They are the creative way to add flexibility and functionality to your space.extensively applied to star hotels, meeting rooms, ballrooms, clubs, banquet hall, convention centers, multi-function halls, training rooms and other facilities.
2. Have your partition wall products come in standard sizes?
No, actually all of our movable partition wall sizes are supported customized. The panels move on the ceiling track with no floor track.
3. How long does it take to install a partition system?
We will provide a detailed schedule on receipt of the order and keep everything updated regularly on progress. The time depends very much on the site and anything which we try to meet wherever possible.
4. Can you give us an initial indication of the cost of a particular system?
Yes.we can. We would need more information and possibly a site visit and survey before confirming and exact price.
5. Do I need to have an architect or building contractor?
Usually we only offer the site supervision service.if you are already using another contractor for other work then we can work with them to ensure a smooth process.
6. Do I need to provide technical information or drawings?
Yes, we need. If you already have technical information or drawing then we can use them to build and install the selected
products.
7. Are your products guaranteed?
Yes,all of our products carry a full 3 Year guarantee,covering all parts and defects. We can also provide an extended warranty if require and the products are expected to last a lifetime.
