Ballroom Fireproof Board Acoustic Mobile Partition Sliding Walls
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | Model 100 mobile partition sliding wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ, small quantity welcome |
|---|---|
| Price: | $82-88 per square meter |
| Packaging Details: | Paper carton, outside with wooden box |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Mobile Partition Sliding Wall | System: | Suspension System |
|---|---|---|---|
| Thickness: | 100 Mm | Max Height: | 6 Meters |
| Application: | Ballroom Partition | Finish: | Fireproof Board |
| Highlight: | Ballroom Fireproof Acoustic Mobile Partition,55dB Acoustic Mobile Partition,Melamine Acoustic Mobile Partition |
||
Product Description

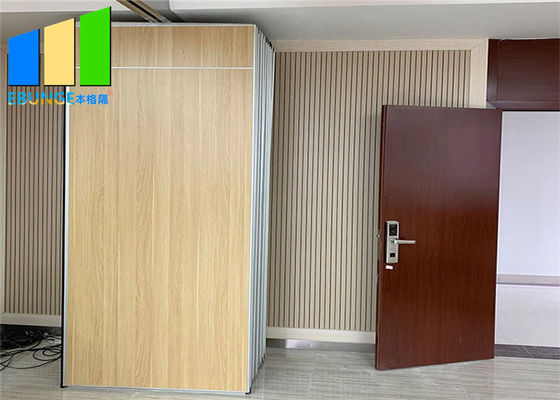

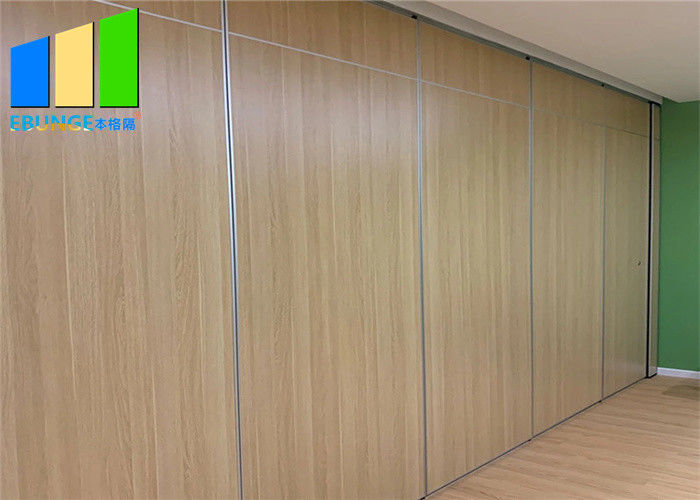

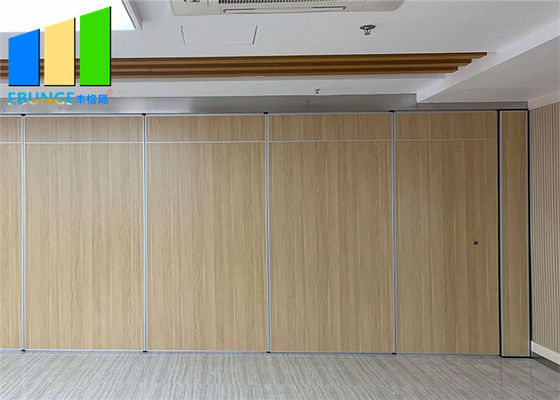

Ballroom Fireproof Board Acoustic Mobile Partition Sliding Walls
Mobile Partition Sliding Walls Detail
With the unique multi-layer panel system, our mobile partition sliding wall has excellent acoustic performance with a STC up to 22-55 dB.
Double PVC seals are mounted around the sound proof partitions to provide the highest level of acoustic integrity. More importantly, this fit can also achieve the desired acoustic integrity between two nearby rooms.
The acoustic structure includes multi-layer board at the top and bottom of the sound proof partitions and the glass wool inside. The acoustic performance is up to 40 STC, and the fabric wrapped acoustic panel and perforated MDF panel can be used to reduce echo. The vinyl at all edges help to prolong life time and seal the noise.
These mobile partition sliding walls will be provided in an end-folded configuration to meet a variety of parking requirements and the first panel can be provided as a standard access door.
The mobile partition sliding wall has aluminum profiles, and panels are available for a variety of surface treatments including painted, polished veneer or various standard or high pressure laminate. Fire rated finish panel is also available.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Mobile Partition Sliding Walls Application
Studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
Theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
Meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
Air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
